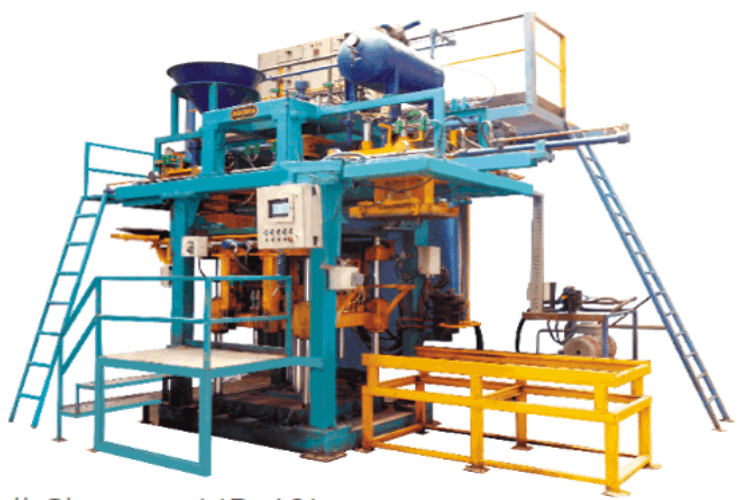

Shell Shooter SHELL SHOOTER VP 40L

Home >> Products >> SHELL SHOOTER VP 40L

Maximum weight of core	50 kg (Approx.)
Maximum Opening	875 mm
Minimum Opening	200 mm
Sand hooper capacity	150 LTR.
Blow opening	700 x 400 mm
Air pressure required	6 kg\cm² (Dry air)
Sand blowing pressure	2-6 kg\ cm²
Operation	Hydraulic
Electrical Requirement	20KW-415VAC-50HZ
Floor space	4700 mm x 2200 mm X 4000 mm H.
Approx. weight of machine	12/14 TON(Approx.)
Heat Capacity	12 kw - D Type Heater 1KW / 230 VAC
Side Mandrel Maximum opening	950 mm
Side Mandrel Minimum opening	700 mm

The operating function of ARKORA series machine are designed to provide long term flexibility and consistently high quality cores.
Use of advanced technology to achieve high density cores.
Machine is designed robustly considering factor of safety.
PLC electric control panel for core shooter machine with auto temperature controller.
Resin coated sand used for shell core making.
Manufacture of cores for intricate and complicated castings such as cylinder head, pump, turbines, impellers, water jackets etc.
The scratch hardness of the core is above 90.
