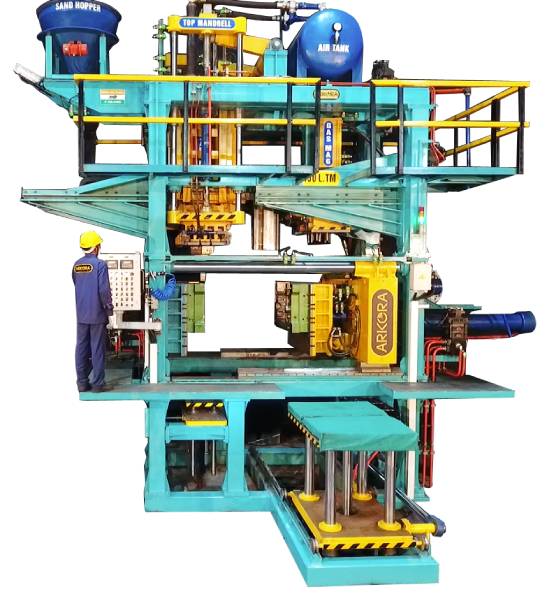

Cold Box Core Shooting Machine_Cold Box VP 150L
| Maximum weight of core | 165 kg (Approx.) |
| Maximum Opening | 1600 mm |
| Minimum Opening | 200mm |
| Sand hooper capacity | 360 LTR. |
| Blow opening | 930 x 740 mm |
| Gassing opening | 900 x 400 mm |
| Air pressure required | 6 kg\cm² (Dry air) |
| Sand blowing pressure | 2-6 kg\ cm² |
| Operation | Hydraulic |
| Electrical Requirement | 55KW-415VAC-50HZ |
| Floor space | 6500 mm x 4100 mm x 5300 mm (H) |
| Approx. weight of machine | 36 TON (Approx.) |
| Core box mounting plate dim. | 1300 mm X 1050 mm |
FEATURES
- The operating functions are designed to provide flexibility and consistent core quality.
- Use of advanced technology to achieve high density cores.
- Machine is designed robustly considering factor of safety.
- Structural analysis is done for static and dynamic loading.
- Touch screen HMI console to set machine parameters.
- Patented slap gate for sand feeding.
- The entire machine is designed with hydraulic system for operational consistency.
- Electronic sand level control as per core weight.
- The scratch Hardness of the core is above 70.
- Special coating for machine parts.
