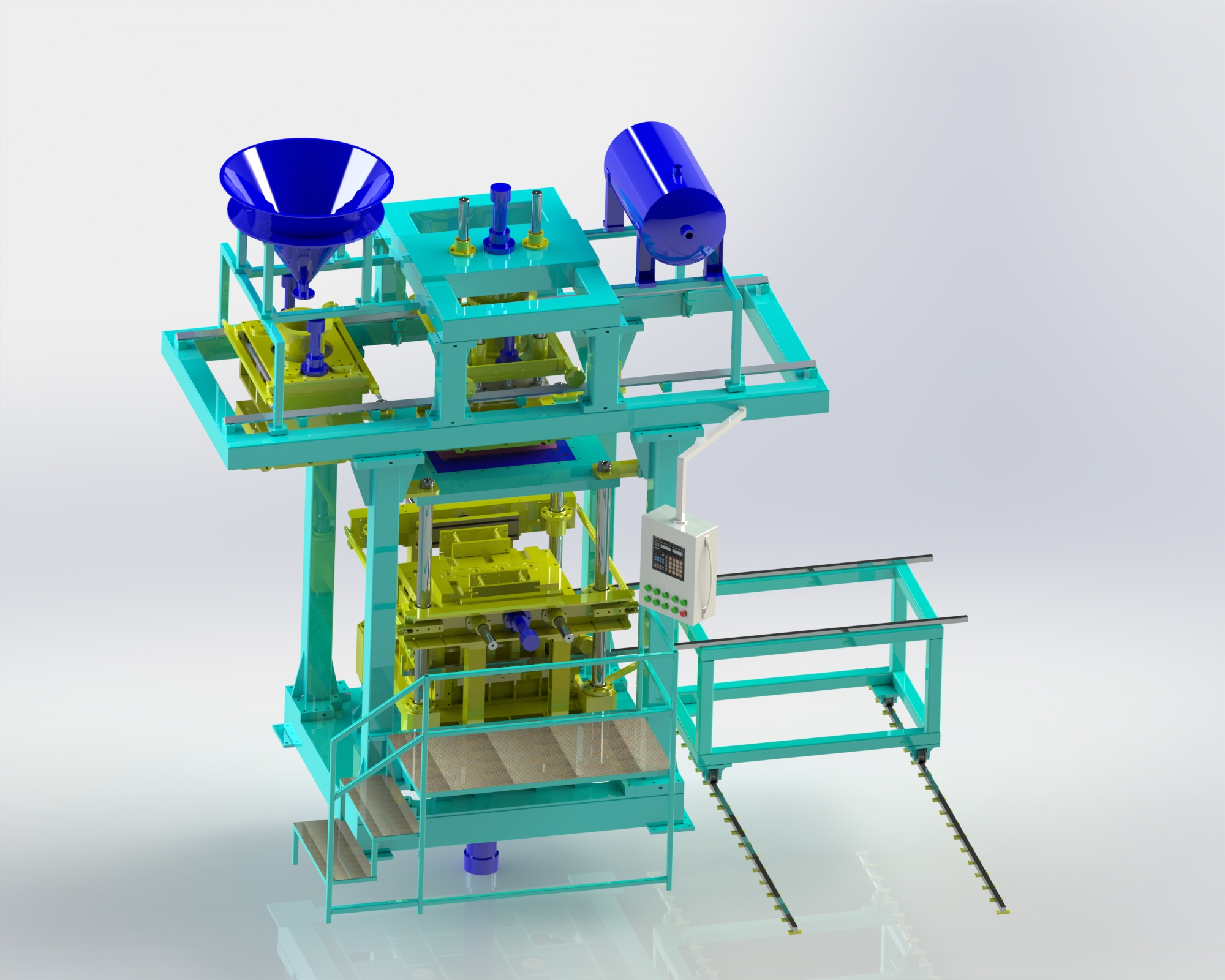

Shell Shooter SHELL SHOOTER VP 35L
| Maximum weight of core | 40 kg (Approx.) |
| Maximum Opening | 1000 mm |
| Minimum Opening | 900 mm |
| Sand hooper capacity | 150 LTR. |
| Blow opening | 650 x 350 mm |
| Air pressure required | 6 kg\cm² (Dry air) |
| Sand blowing pressure | 2-6 kg\ cm² |
| Operation | Hydraulic |
| Electrical Requirement | 18KW-415VAC-50HZ |
| Floor space | 4200 mm x 2200 mm X 3600 mm H. |
| Approx. weight of machine | 8/9 TON(Approx.) |
| Heat Capacity | 8 kw - D Type Heater 1KW / 230 VAC |
FEATURES
- The operating function of ARKORA series machine are designed to provide long term flexibility and consistently high quality cores.
- Use of advanced technology to achieve high density cores.
- Machine is designed robustly considering factor of safety.
- PLC electric control panel for core shooter machine with auto temperature controller.
- Resin coated sand used for shell core making.
- Manufacture of cores for intricate and complicated castings such as cylinder head, pump, turbines, impellers, water jackets etc.
- The scratch hardness of the core is above 90.
