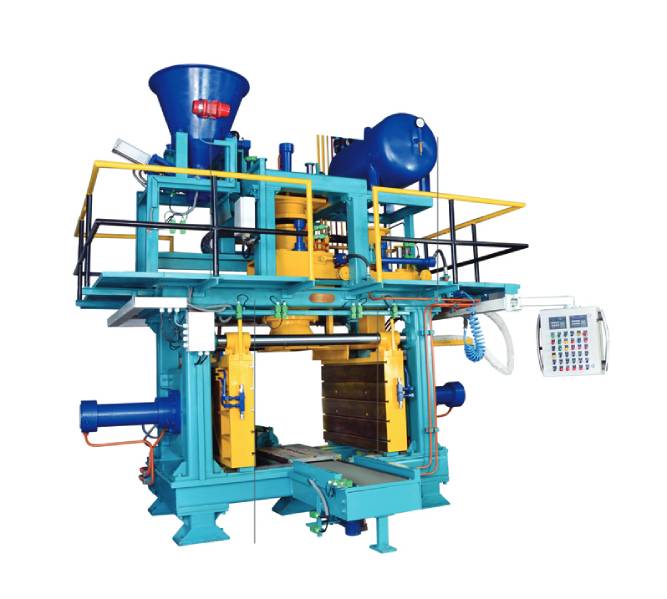

Cold Box Core Shooting Machine_Cold Box VP 80L
| Maximum weight of core | 110 ~ 130kg (Approx.) |
| Maximum Opening | 1200mm |
| Minimum Opening | 400mm |
| Sand hooper capacity | 250 LTR. |
| Blow opening | 750 x 400 mm |
| Gassing opening | 750 x 400 mm |
| Air pressure required | 6 kg\cm² (Dry air) |
| Sand blowing pressure | 2-6 kg\ cm² |
| Operation | Hydraulic |
| Electrical Requirement | 30KW-415VAC-50HZ |
| Floor space | 2500mm x 4000mm x 4200mm H. |
| Approx. weight of machine | 13/15 TON(Approx.) |
| Core box mounting plate dim. | L 1400 / H 850 |
FEATURES
- The operating functions are designed to provide flexibility and consistent core quality.
- Use of advanced technology to achieve high density cores.
- Machine is designed robustly considering factor of safety.
- Structural analysis is done for static and dynamic loading.
- Touch screen HMI console to set machine parameters.
- Patented slap gate for sand feeding.
- The entire machine is designed with hydraulic system for operational consistency.
- Electronic sand level control as per core weight.
- The scratch Hardness of the core is above 70.
- Special coating for machine parts.
